Fiber Channel SFP Modules 40GBASE-CR4 QSFP To 4 10GBASE-CU

Brand Name : Sourcelight or OEM

Model Number : QSFP-4SFP10G-CU1M

Certification : CE/FCC/RoHS/TUV/UL

Place of Origin : Shenzhen,China

MOQ : 1PCS

Price : Get Latest Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500PCS Per Week

Delivery Time : Shipped in 1~3 days after PO confirmed

Packaging Details : 1pc Independent packaging.

Product name : QSFP-4SFP10G-1M

Datarate : 10G/CH

Distance : Up to 5M For Passive copper cable

Voltage Supply : 3.3v

Connector : QSFP+ to 4sfp+

Temp : 0°C~70°C

Contact Now

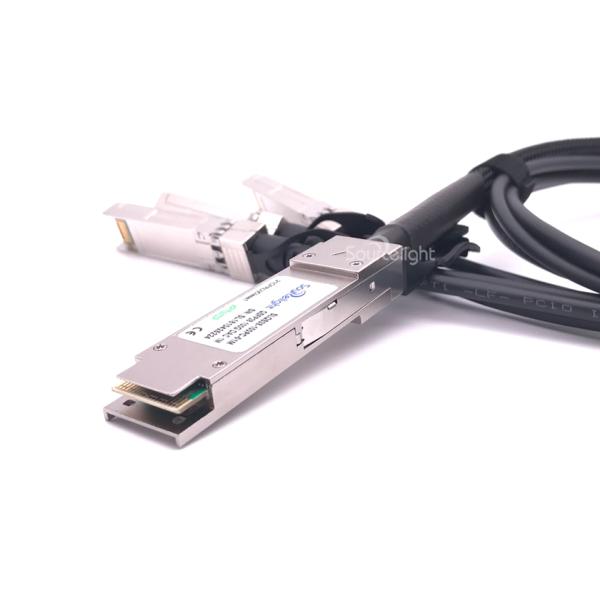

QSFP-4SFP10G-1M 40GBASE-CR4 QSFP to 4 10GBASE-CU SFP+ direct-attach breakout cable

Overview

The QSFP+ to 4x SFP+ Passive cable assemblies are high performance,cost effective for SFP+ and QSFP+ equipment interconnects . The Hybrid cables are compliant with SFF-8436 and SFF-8431 specifications.

Parameter

Package (Form Factor)

QSFP-4SFP+ Copper Cable

Data Rate (typical)

10.3 Gbps per CH

Distance

Up to 5m copper cable

Low/High Case Temperature

0°C~70°C

Voltage Supply

3.3v (typical)

Connector

QSFP and SFP+

Application

  • 40G QSFP+ to 4×10SFP+

  • 10G/40Gigabit Ethernet

  • InfiniBand4x SDR, DDR, QDR

  • Switches, Routers, and HBAs

  • Data Centers

  • Fiber Channel

Features

  • Hybrid cable conforms to the Small Form Factor SFF-8436 and SFF-8431

  • Support for multi-gigabit data rates :1 Gb/s - 10 Gb/s (per channel)

  • Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)

  • Hybrid cable link length up to 5m (passive limiting)

  • High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector

  • Power Supply :+3.3V

  • Low power consumption: 0.02 W (typ.)

  • Temperature Range: 0~ 70 °C

Others DAC to choose

Part Number

Product Description

AWG

40G QSFP+ Copper Direct-attached Cable

CAB-QSFP-50CM

40GBASE-CR4 QSFP+ direct-attach copper cable, 0.5 meter passive

30

CAB-QSFP-1M

40GBASE-CR4 QSFP+ direct-attach copper cable, 1 meter passive

30

CAB-QSFP-2M

40GBASE-CR4 QSFP+ direct-attach copper cable, 2 meters passive

30

CAB-QSFP-3M

40GBASE-CR4 QSFP+ direct-attach copper cable, 3 meters passive

30

CAB-QSFP-4M

40GBASE-CR4 QSFP+ direct-attach copper cable, 4 meters passive

28

CAB-QSFP-5M

40GBASE-CR4 QSFP+ direct-attach copper cable, 5 meters passive

28

CAB-QSFP-7M

40GBASE-CR4 QSFP+ direct-attach copper cable, 7 meters passive

28

CAB-QSFP-9M

40GBASE-CR4 QSFP+ direct-attach copper cable,9 meters passive

24

CAB-QSFP-10M

40GBASE-CR4 QSFP+ direct-attach copper cable, 10 meters passive

24

40G Active QSFP+ Cable

CAB-QSFP-7M

40GBASE-CR4 QSFP+ direct-attach copper cable, 7 meters active

30

CAB-QSFP-10M

40GBASE-CR4 QSFP+ direct-attach copper cable, 10 meters active

28

CAB-QSFP-15M

40GBASE-CR4 QSFP+ direct-attach copper cable, 15 meters active

28

Fiber Channel SFP Modules 40GBASE-CR4 QSFP To 4 10GBASE-CU

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
